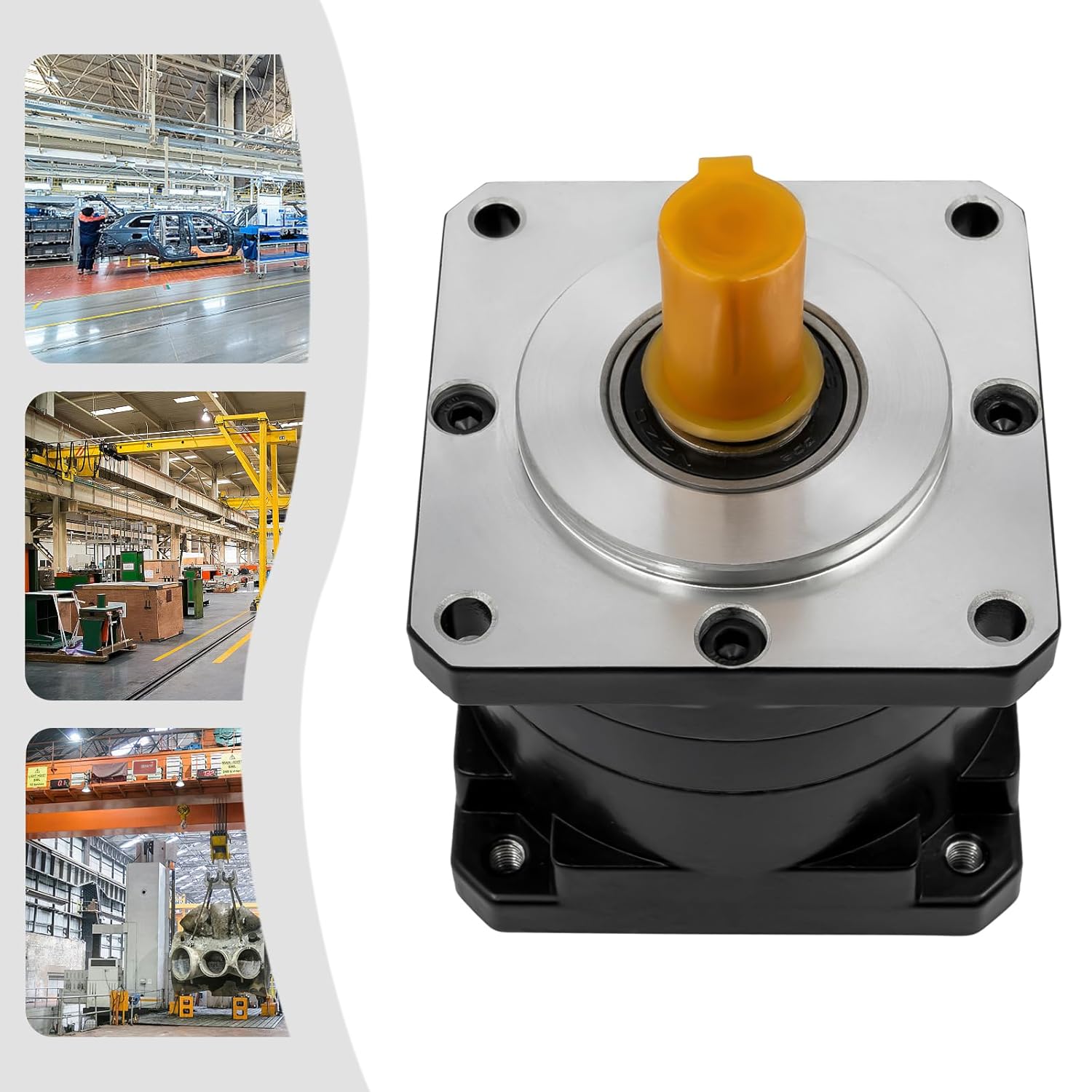

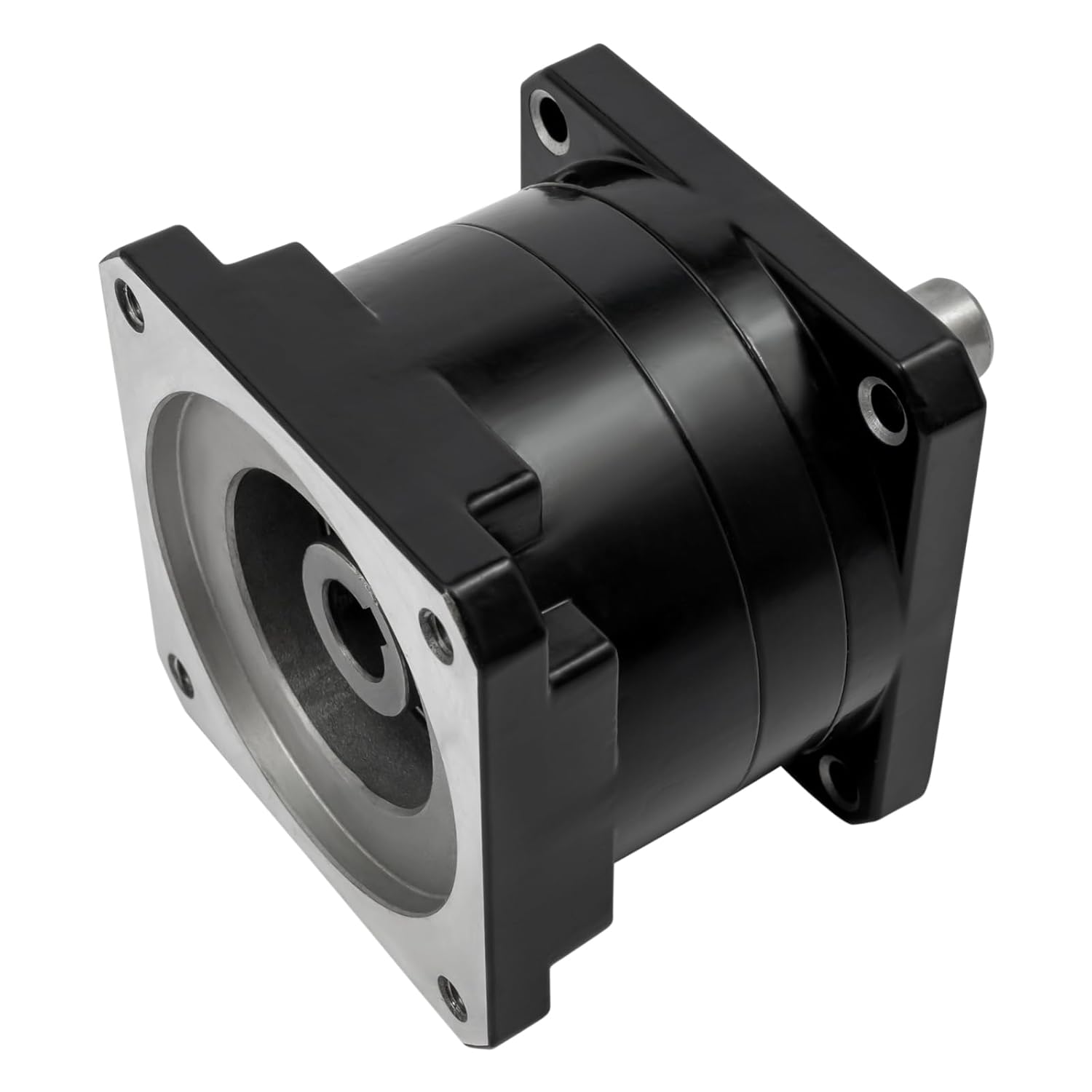

Planetary Gearbox Ratio, 86 Stepper Motor Reducer Gearbox 6:1 Planetary Gearboxs Gear Head Speed Reducer 3000 RPM Speed Reducers for CNC Router Bandsaw Benchtop Machine

Description The high-class 86 stepper motor reducer gearbox exemplifies precision engineering and efficient power transmission. Constructed from high-strength materials, it is built for a long service life and reliable use, even under demanding high-load conditions. Its advanced design and precisely machined gear deliver high torque output and enhanced transmission efficiency. The compact form factor conserves valuable installation space and reduces the overall burden on equipment, making it the ideal solution for space-constrained applications. Details Smooth Edges: The smooth and burr-free edges enhance the beauty of the product and ensure your safety when installing and cleaning it. Positioning Pin: The horizontal structure and positioning pin make your installation more convenient and efficient. Rectangular Base: It increases the contact area with the plane to ensure its stability when working. Specifications Material: Cast Aluminum, 45#Steel Process: Hobbing Color: Black Style: Modern Assembly Required: No Installation Form: Vertical Gear Type: Cylindrical Gear Reducer Input Speed: 100-3000rpm Output Speed: 16-500rpm Max. Holding Torque: 40N·m Reduction Ratio: 6:1 Operating Noise: ≤ 70dB Input Hole Spacing: 69.6mm/2.74in Output Hole Spacing: 70mm/2.76in Product Size: 8.6*8.6*11.1cm/ 3.39*3.39*4.37in Package Size: 11*11.5*13cm/4.33*4.53*5.12in Gross Weight: 1.8kg/3.97 lbs Net Weight: 1.76kg/3.88 lbs Package Included 1* 86 Stepper Motor Reducer Gearbox Other Accessories Required for Installation

• 【 High-quality Material 】It is made of high-quality cast aluminum and 45 # steel and processed by hobbing, which is wear-resistant, impact-resistant, and rust-resistant, protecting the internal parts well and ensuring longer service life.
• 【 Highly Efficient 】It features a precision gear meshing design, low-friction bearings, and streamlined internal components to enhance power transmission efficiency, minimize energy waste during use, and reduce running expenses.
• 【 Outstanding Performance 】The input shaft and sun gear are designed as an integrated unit, delivering enhanced precision, better alignment, and the ability to handle higher torque loads, resulting in improved accuracy and use stability. With a gear reduction ratio of 6:1, it allows for easier adjustment of motor speed.
• 【 Space Efficient Design 】Its streamlined structure and low weight (3.88 lbs) enable installation in space-constrained machinery, making it ideally suited for integration into compact automation mechanisms.

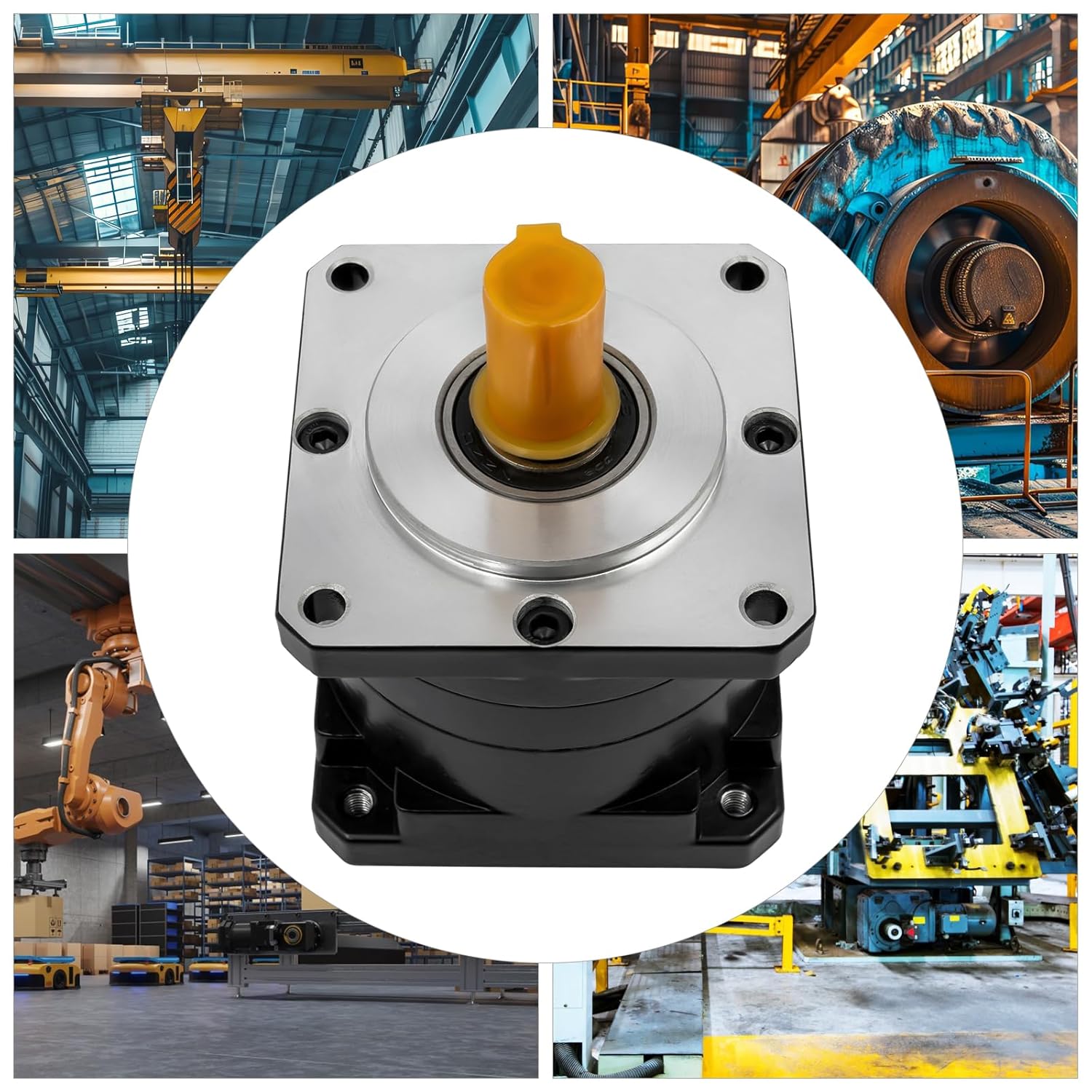

• 【 Application 】It is mainly used to reduce the speed of 86 stepper motors and increase holding torque. It is widely applied in CNC machines, such as engraving machines, mills, lathes, work benches, benches, bandsaw machines, grinding machines, etc.
